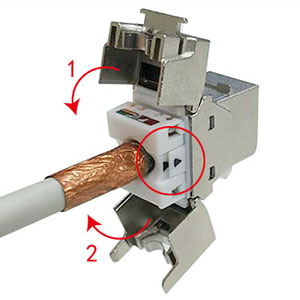

CAT6A STP Tool-less Shielded Keystone Jack 180 degree
Desc： CAT6A tool-less shielded keystone jack 180 degree
ANSI/TIA-568.C.2:2009 & ISO/IEC 11801 standard
ABS UL-94V-0 housing
50u" gold-plated
Certificate:UL / cUL / DELTA EC
Applications:Gigabit Ethernet / ATM155/622 / TP-PMD / ADSL / ISDN
Features:T-568A/B wiring
RJ45 complies with FCC part 68 standard
Provides termination for 22-26 AWG wire
Specifications:Housing is fire-resistance ABS UL94V-0
Zinc alloy, nickel plated
Contacts are 50u" gold-plated
Jack insertion life cycles > 750
IDC insertion life cycles > 250
Contact resistance : 20M Ω
Current rating : 1.5Amps
DC resistance : Max.0.1 Ω
Operating temperature : -40°C~+60°C
Type： STP Tool-less
Pkg count： Part Number : SY-504S-10G
File： SY-504S-C6A.pdf
