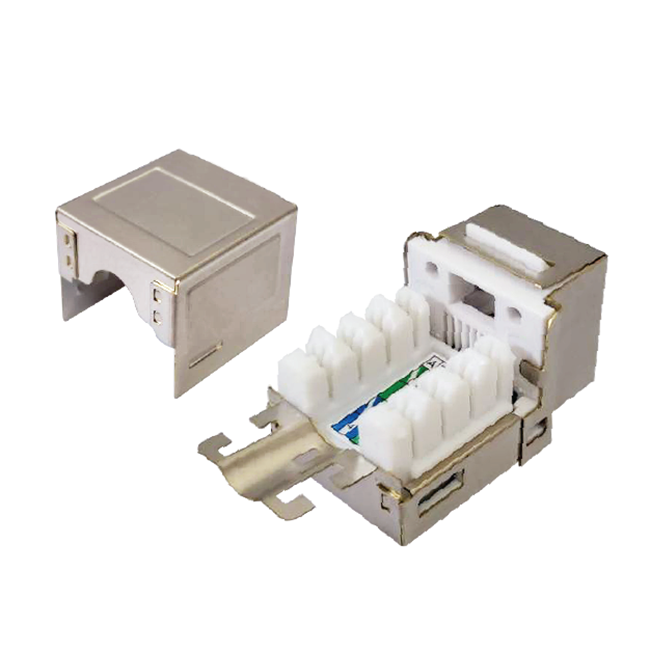

CAT5e STP Shielded Keystone Jack 90 degree
Desc: CAT5e RJ45 Shielded Keystone Jack 90 degree
50u" gold-plated
Certificate:UL / cUL / DELTA EC
Applications:Gigabit Ethernet / ATM155/622 / TP-PMD / ADSL / ISDN
Features:T-568A/B wiring
RJ45 complies with FCC part 68 standard
110/Krone IDC connector
Provides termination for 22-26 AWG wire
Specifications:Housing is fire-resistance ABS UL94V-0
Shield : 0.25mm Thickness copper alloy wth nickle plated.
Contacts are 50u" gold-plated
Jack insertion life cycles > 750
IDC insertion life cycles > 250
Contact resistance : 20M Ω
Current rating : 1.5Amps
DC resistance : Max.0.1 Ω
Operating temperature : -40°C~+60°C
Color: Stainless
Type: STP
Pkg count: Part Number : SY-505S
Wiring: T568A/B
File: SY-505S(C20240325).pdf
