SHIUNN YANG ENTERPRISE CO., LTD.


UFTP-C6A 23AWG
描述: 超六類遮蔽式
4對單股線23AWG / 多股線26AWG

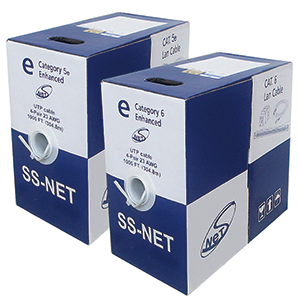

305M/BOX
UL CSA ROHS TIA/EIA568C.2-1 CM / CMR

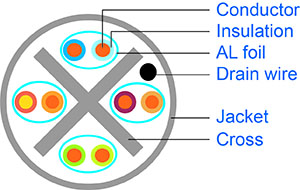

Conductor: Solid Bare copper U/FTP C6A 23AWG
Jacket: +75℃-20℃ PVC Compound (CMI-80S)
Min. Avg. Thickness: 0.585 mm;
Min. Thickness: 0.458 mm
Approximate O.D.: 8.3 mm +/- 0.3mm
Electric Requirements: (Cable length: 100M)
Characteristic Impedance(Zo): 85~115Ω (1~250 MHz)
DC. Resistance Capacitance Unbalance: 2%
Pair-to-Ground Capacitance Unbalance: 330 pF/100M Max
Conductor Resistance: 7.32Ω/ 100M 20℃ Max
Mutual Capacitance: 5.6 nF/m Max
Spark Test: 2.5KV
Nominal Velocity of Propagation (NVP): 74 %
