SHIUNN YANG ENTERPRISE CO., LTD.

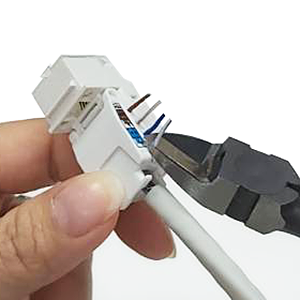

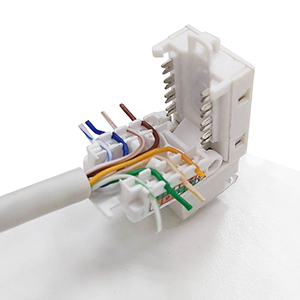

CAT6 UTP 免工具網路通訊插座90度
描述: 六類RJ45免工具網路通訊插座90度
符合ANSI/TIA-568.C.2:2009 & ISO/IEC 11801規格
附透明防塵蓋
採用UL-94V-0,耐衝擊、滯燃性ABS材質
50u"鍍金
Certificate:UL / cUL / DELTA EC
Applications:Gigabit Ethernet / ATM155/622 / TP-PMD / ADSL / ISDN
Features:T-568A/B wiring
RJ45 complies with FCC part 68 standard
Provides termination for 22-26 AWG wire
Specifications:Housing is fire-resistance ABS UL94V-0
Contacts are 50u" gold-plated
Jack insertion life cycles > 750
IDC insertion life cycles > 250
Contact resistance : 20M Ω
Current rating : 1.5Amps
DC resistance : Max.0.1 Ω
Operating temperature : -40°C~+60°C
顏色:
類型: Part Number : SY-504E
包裝數量: 1/100/500
檔案: SY-504E.pdf
