UTP-C5e
描述: 超五類非屏蔽式
4對 24AWG 單股線/24AWG 多股線

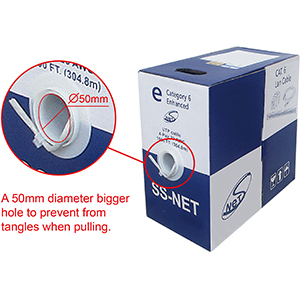

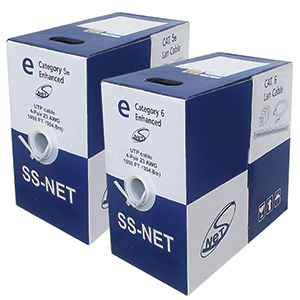

305M/箱
UL CSA ROHS TIA/EIA568C.2-1 CM /CMR

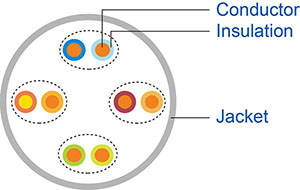

Conductor: Solid Bare copper UTP C5e 24AWG
Jacket: +75℃-20℃ PVC Compound (CMI-80S)
Min. Avg. Thickness: 0.585 mm;
Min. Thickness: 0.458 mm
Approximate O.D.: 5.0 mm ~ 6.5 +/- 0.3mm
Electric Requirements: (Cable length: 100M)
Characteristic Impedance(Zo): 85~115Ω (1~250 MHz)
DC. Resistance Capacitance Unbalance: 5%
Pair-to-Ground Capacitance Unbalance: 330 pF/100M Max
Conductor Resistance: 9.38Ω/ 100M 20℃ Max
Mutual Capacitance: 5.6 nF/m Max
Spark Test: 2.5KV
Nominal Velocity of Propagation (NVP): 69 %
線徑: 5.3mm
重量: 8.3 Kg/kft
包裝: Box/kft
檔案: UTP-C5e.pdf
