SHIUNN YANG ENTERPRISE CO., LTD.

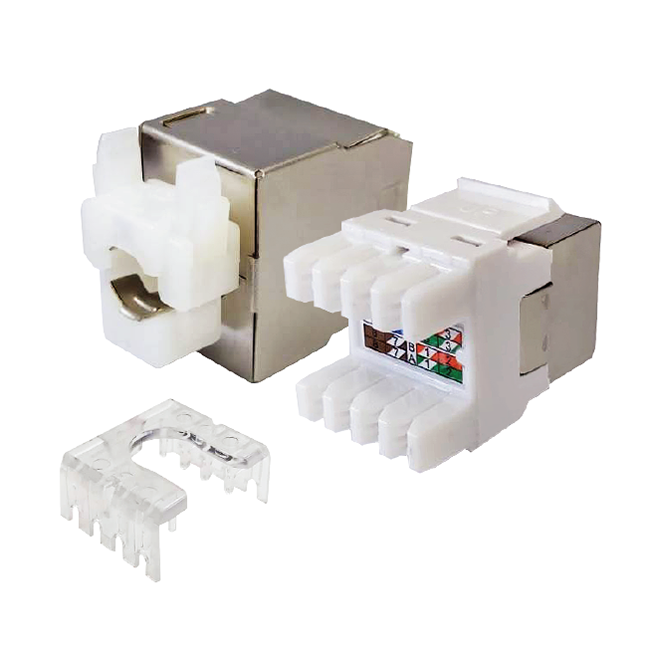

CAT6 STP 屏蔽式網路通訊插座180度
描述: 六類RJ45屏蔽式網路通訊插座180度
符合ANSI/TIA-568.C.2:2009 & ISO/IEC 11801規格
採用UL-94V-0,耐衝擊、滯燃性ABS材質
50u"鍍金
Certificate:UL / cUL / DELTA EC
Applications:Gigabit Ethernet / ATM155/622 / TP-PMD / ADSL / ISDN
Features:T-568A/B wiring
RJ45 complies with FCC part 68 standard
110/Krone IDC connector
Provides termination for 22-26 AWG wire
Specifications:Housing is fire-resistance ABS UL94V-0
Shield : 0.25mm Thickness copper alloy wth nickle plated.
Contacts are 50u" gold-plated
Jack insertion life cycles > 750
IDC insertion life cycles > 250
Contact resistance : 20M Ω
Current rating : 1.5Amps
DC resistance : Max.0.1 Ω
Operating temperature : -40°C~+60°C
類型: 屏蔽式
包裝數量: Part Number : SY504S-180
檔案: SY-504S-180(C).pdf
