SHIUNN YANG ENTERPRISE CO., LTD.

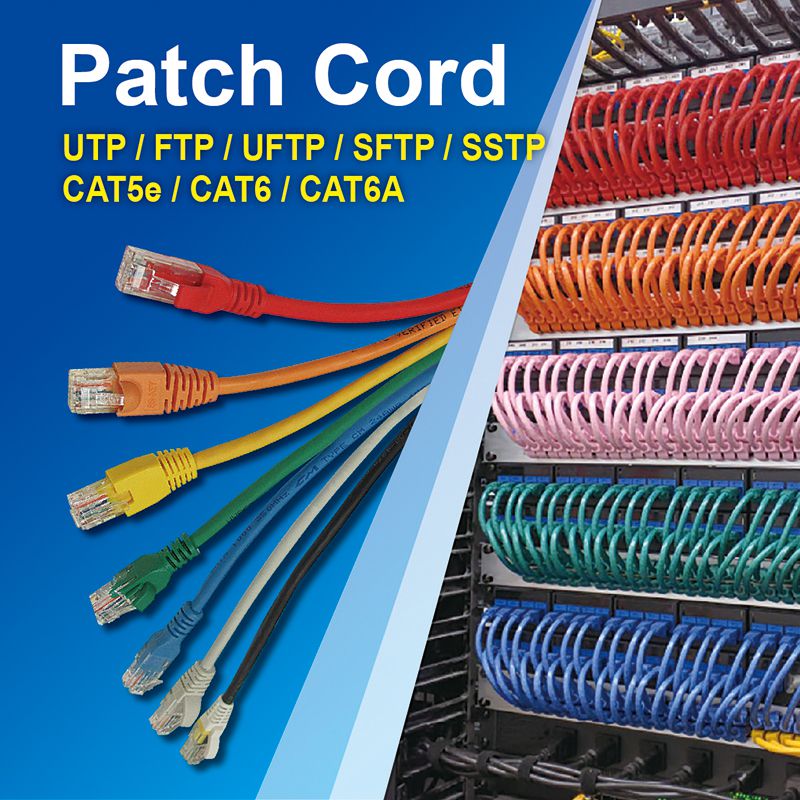

CAT6A / CAT6 / CAT5E MR8-TYPE PLUG
描述: MR8類型注膠網路跳線
超六類 / 六類 / 超五類
UTP / FTP / UFTP / SFTP / SSTP
可客製化線材長度及顏色
可客製化號碼管
UL CSA ETL ROHS ANSI/TIA-568.2-D RJ45 50u"

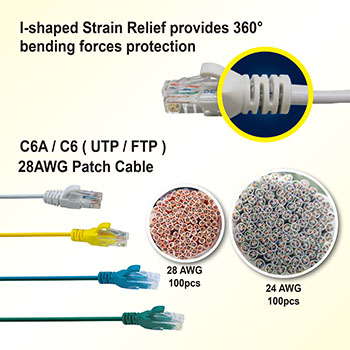

Conductor: Stranded Bare copper UTP 24AWG/STP 26AWG
Jacket: +75℃-20℃ PVC Compound (CMI-80S)
Min. Avg. Thickness: 0.585 mm;
Min. Thickness: 0.458 mm
Approximate O.D.: 5.5 mm +/- 0.3mm
Electric Requirements: (Cable length: 100M)
Characteristic Impedance(Zo): 85~115Ω (1~100 MHz)
Other Requirements: (dB/100M)
DC. Resistance Capacitance Unbalance: 5%
Pair-to-Ground Capacitance Unbalance: 330 pF/100M Max
Conductor Resistance: 9.38Ω/ 100M 20℃ Max
Mutual Capacitance: 5.6 nF/m Max
Spark Test: 2.5KV

顏色: 灰 / 紅 / 黑 / 黃 / 綠 / 藍 / 橘
VIDEO:
檔案: All-MR8.pdf
