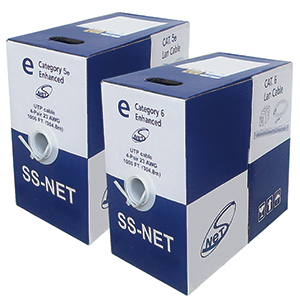

UTP-C6 23AWG
描述: 六類非遮蔽式
4對 23AWG 單股線/24AWG 多股線
305M/箱
UL CSA ROHS TIA/EIA568C.2-1 CM /CMR

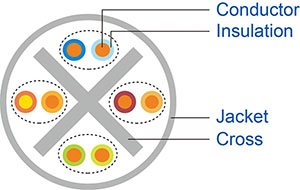

Conductor: Solid Bare copper UTP C6 23AWG
Jacket: +75℃-20℃ PVC Compound (CMI-80S)
Min. Avg. Thickness: 0.585 mm;
Min. Thickness: 0.458 mm
Approximate O.D.: 5.0 mm ~ 6.5 +/- 0.3mm
Electric Requirements: (Cable length: 100M)
Characteristic Impedance(Zo): 85~115Ω (1~250 MHz)
DC. Resistance Capacitance Unbalance: 5%
Pair-to-Ground Capacitance Unbalance: 330 pF/100M Max
Conductor Resistance: 9.38Ω/ 100M 20℃ Max
Mutual Capacitance: 5.6 nF/m Max
Spark Test: 2.5KV
Nominal Velocity of Propagation (NVP): 69 %
線徑: 6.5mm
重量: 11.9 Kg/kft

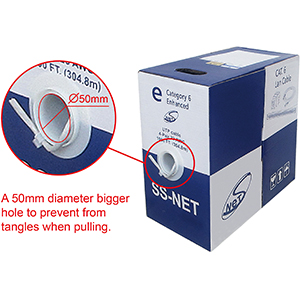

包裝: Box/kft
檔案: UTP-C6.pdf
