M12 X-code 產品介紹
2019-12-20

SHIUNN YANG introducing M12 X-code cable for Ethernet Application, Industrial automation, IP CCTV and security and other applications require a fast Ethernet connection.

The cable features a high data transmission up to 10Gbit/s available length in 1m to 90m molded type M12 8pin
X-code connector with IP67 rated waterproof and vibration protection.

Features :

Connector  M12 8pin X-code IP67 rated connectors conform to IEC61076-2-109
Cable  CAT6A S/FTP shielded 26AWG Stranded Outdoor Black PVC (ISO/IEC11801)
   Date transmission up to 10Gbits

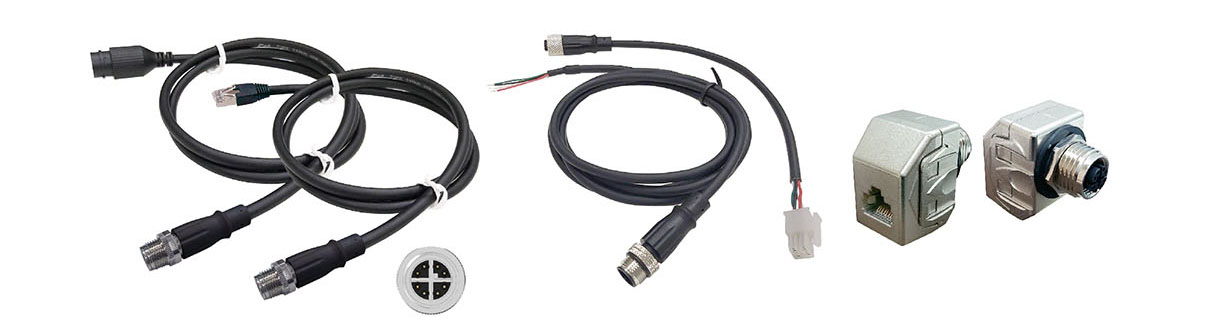

Type Availability

  • M12 X-code 8pin Male to RJ45 Length: 1m up to 90m
  • M12 X-code 8pin Female to RJ45 Length: 1m up to 90m
  • M12 X-code 8pin Male to Female Length: 1m up to 90m
  • M12 X-code 8pin Male to cut Length: optional
  • M12 X-code 8pin Female to RJ45 Female Adapter
